INSIGHT v4 Plans/Parts Info.
Last updated - 11/15/07

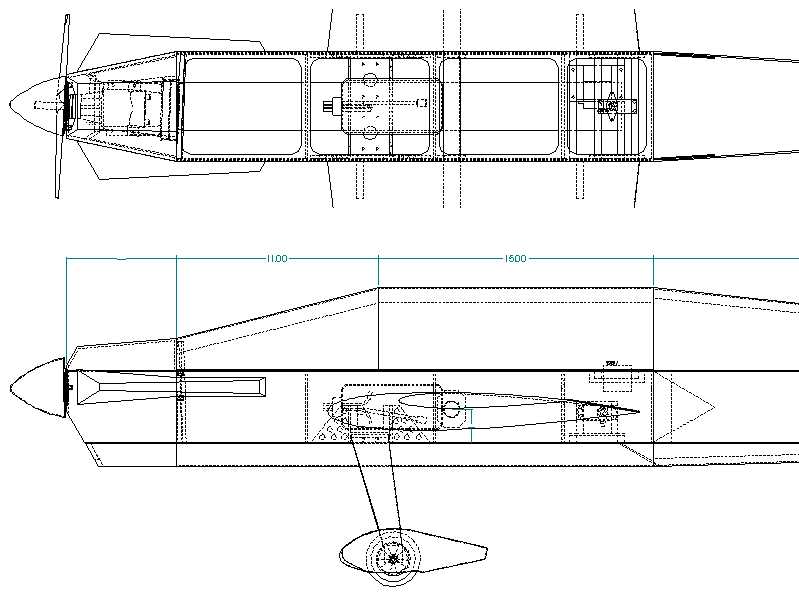

Full size plans for the Insight v4 are available in a pdf file format or in
printed form. There are two sheets which contain all the formers,
and templates for foam cutting. Sheet 1 is 36"x80" (full size fuse
views) and Sheet 2 is 36"x60" (foam templates and parts). The plans
(files or in print) also come with a CD containing a detailed build
notes document and hundreds of photos from previous builds. The
photos include setups for the YS140 and the OS160 (both side
mounted and vertical with wrap around header).
Plans, notes, build pics, etc., via email: $25.00
Plans in pdf format along with a CD: $35.00
Printed plans in a rolled tube and a CD: $65.00
We accept paypal at mj-07@att.net or a check. Please email me for
address and contact information if you would prefer to pay by check.
printed form. There are two sheets which contain all the formers,
and templates for foam cutting. Sheet 1 is 36"x80" (full size fuse
views) and Sheet 2 is 36"x60" (foam templates and parts). The plans
(files or in print) also come with a CD containing a detailed build
notes document and hundreds of photos from previous builds. The
photos include setups for the YS140 and the OS160 (both side
mounted and vertical with wrap around header).
Plans, notes, build pics, etc., via email: $25.00
Plans in pdf format along with a CD: $35.00
Printed plans in a rolled tube and a CD: $65.00
We accept paypal at mj-07@att.net or a check. Please email me for
address and contact information if you would prefer to pay by check.

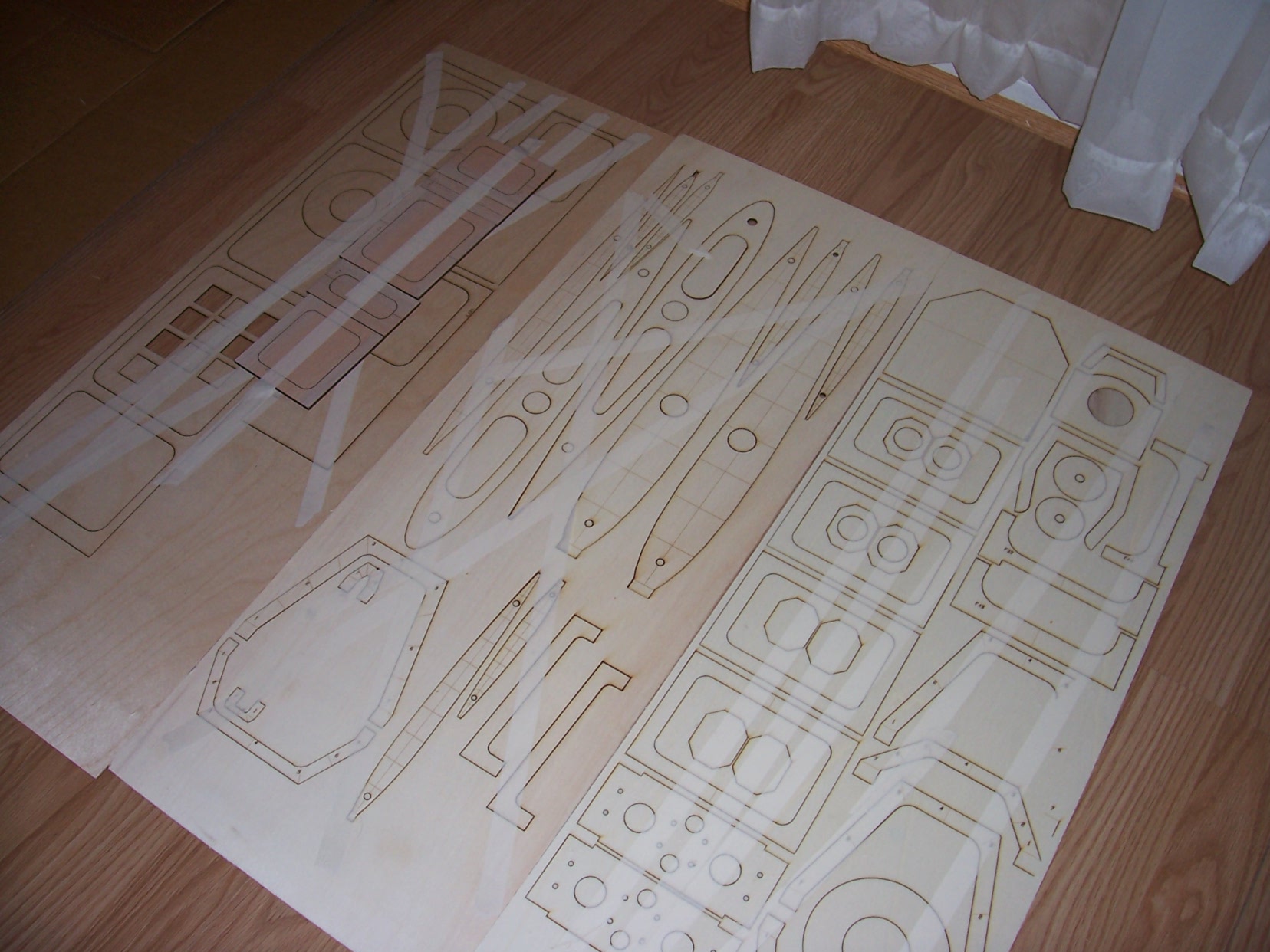

LASER CUT wood packs are now available for
$54.00 + $6.95 shipping (anywhere in the US).
The pack includes all formers, firewall, foam
templates, gear plate, fuse doublers, etc. Sorry,
no sheeting.
***The price for the plans on CD, and all of
the foam parts (cheeks, canopy, belly, rear
decks, wings, stabs, v.fin) is $175.00 plus
shipping..
***The price for the plans on CD, all foam
parts and Laser parts (short kit) is $246.00 plus
shipping.
***Please send us an email if you would like to
quote shipping and total price..
